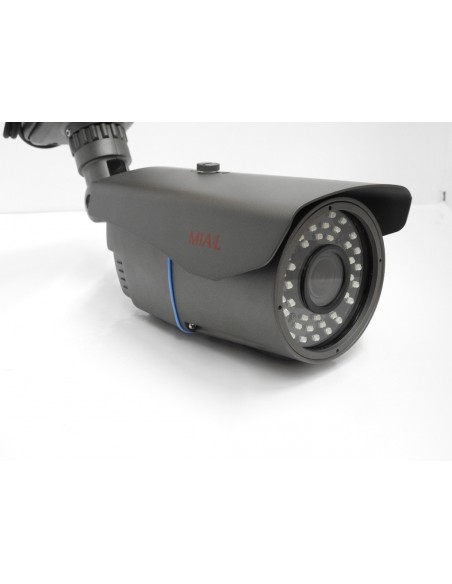

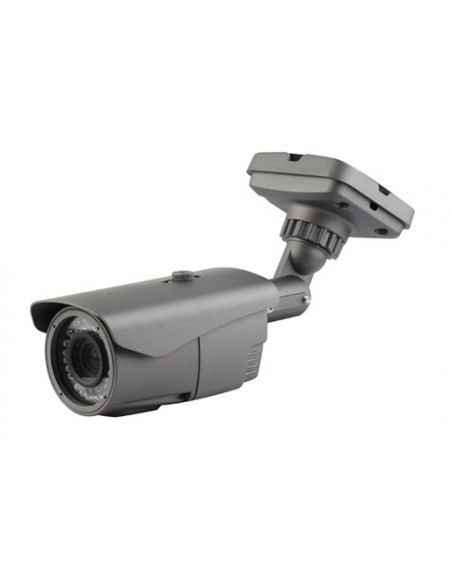

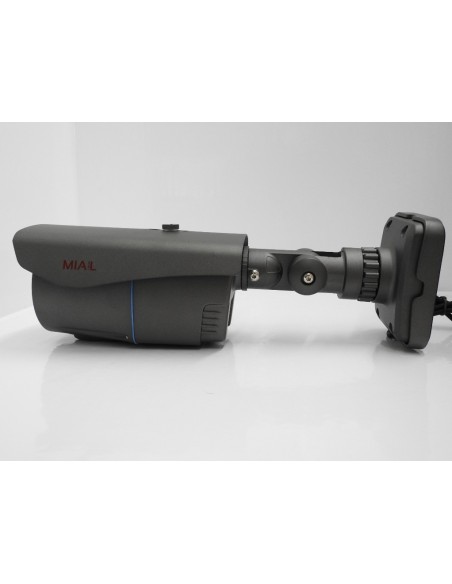

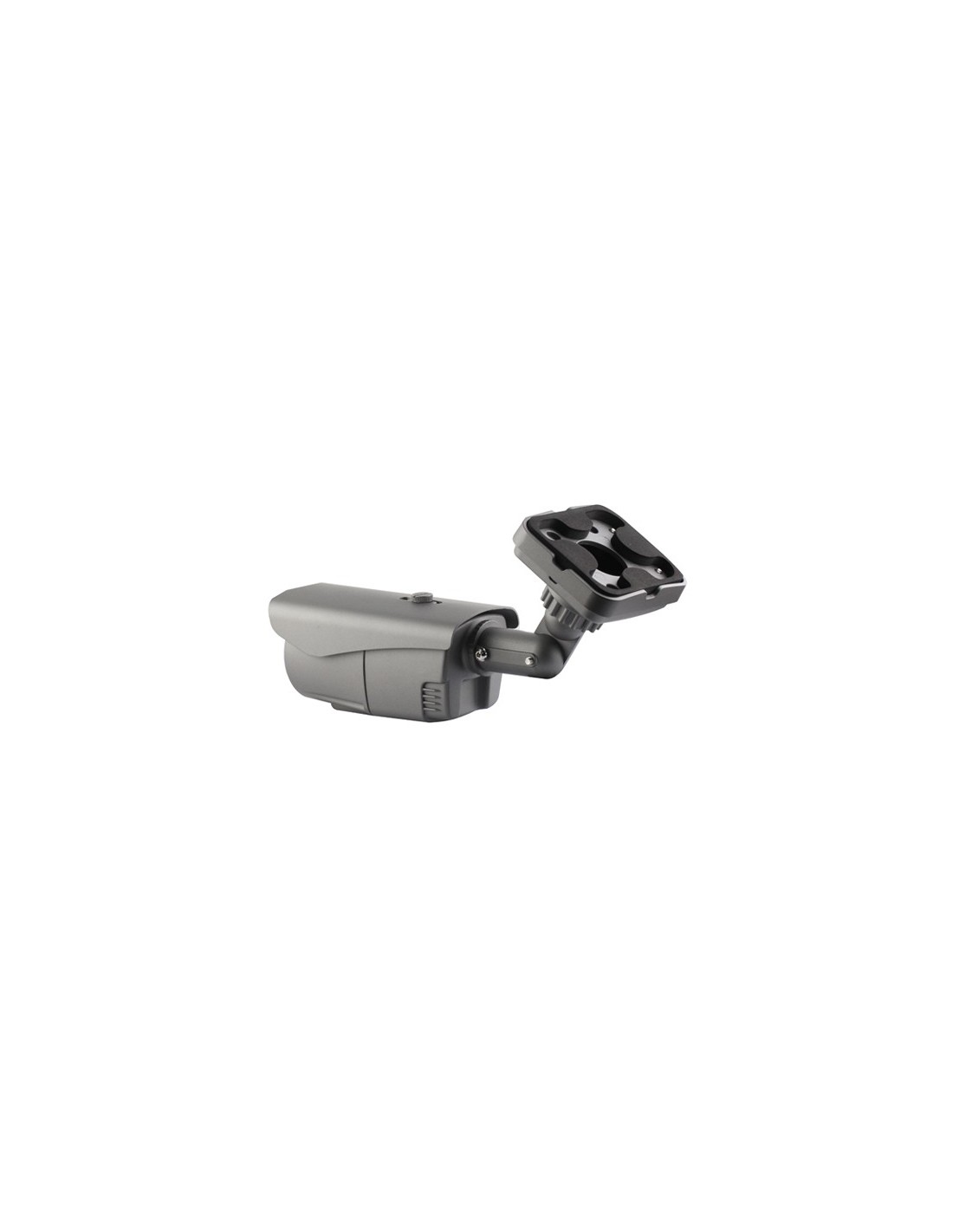

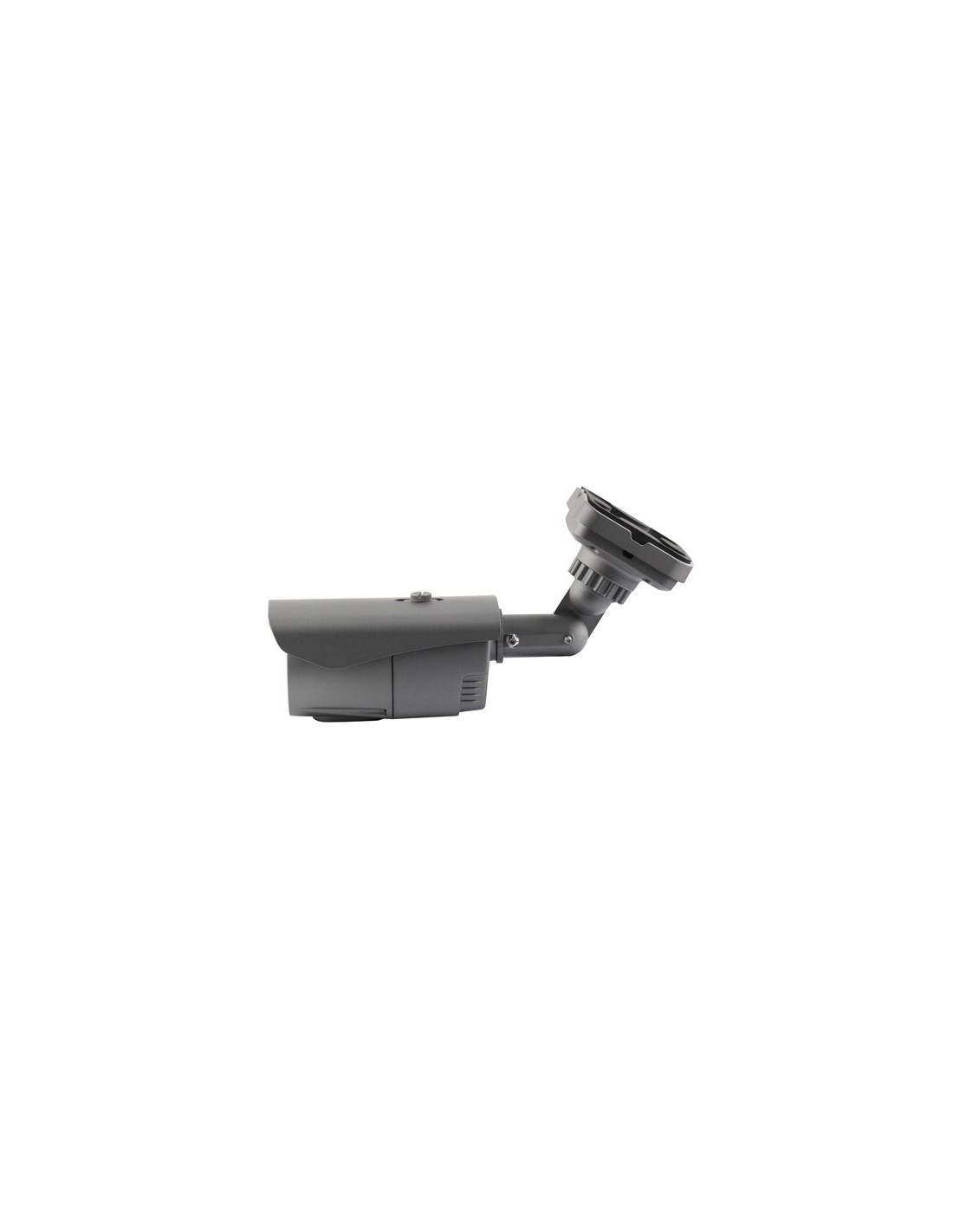

Model NO.

LS-BVN60A-200H/ec

Video Output Mode

AHD/CVBS

Camera

Image Sensor

IMX322

DSP

NVP2441H

Image Resolution

1080P/960H

Effective Pixels

2.4MP, 1920x1080

TV System

PAL/NTSC

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

S/N Ratio

  ≥50dB

Scanning System

Progressive Scan

Lens

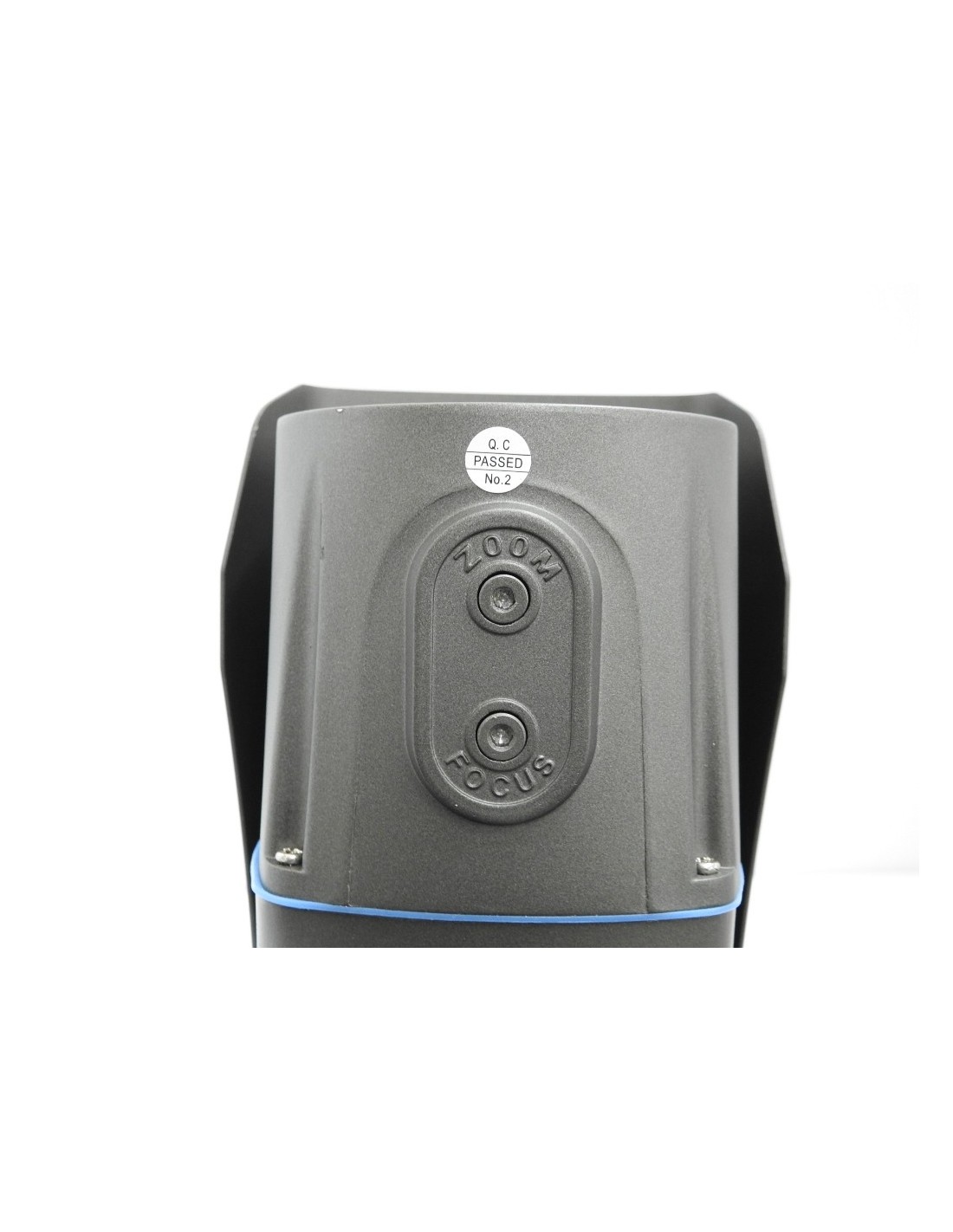

Focus Length

2.8-12mm

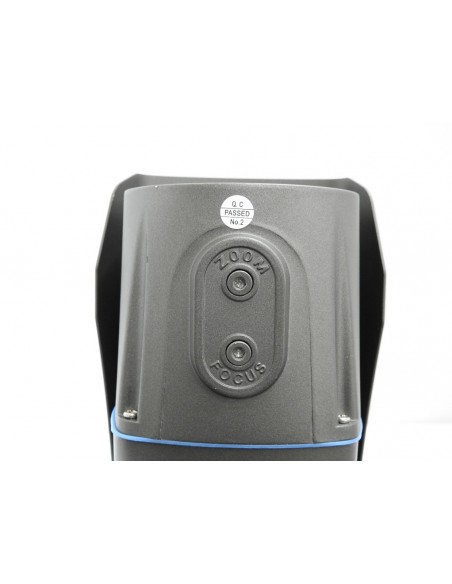

Focus Control

Manual

Lens Type

Manual

Pixels

2M Pixels

Auto Iris Support

NO

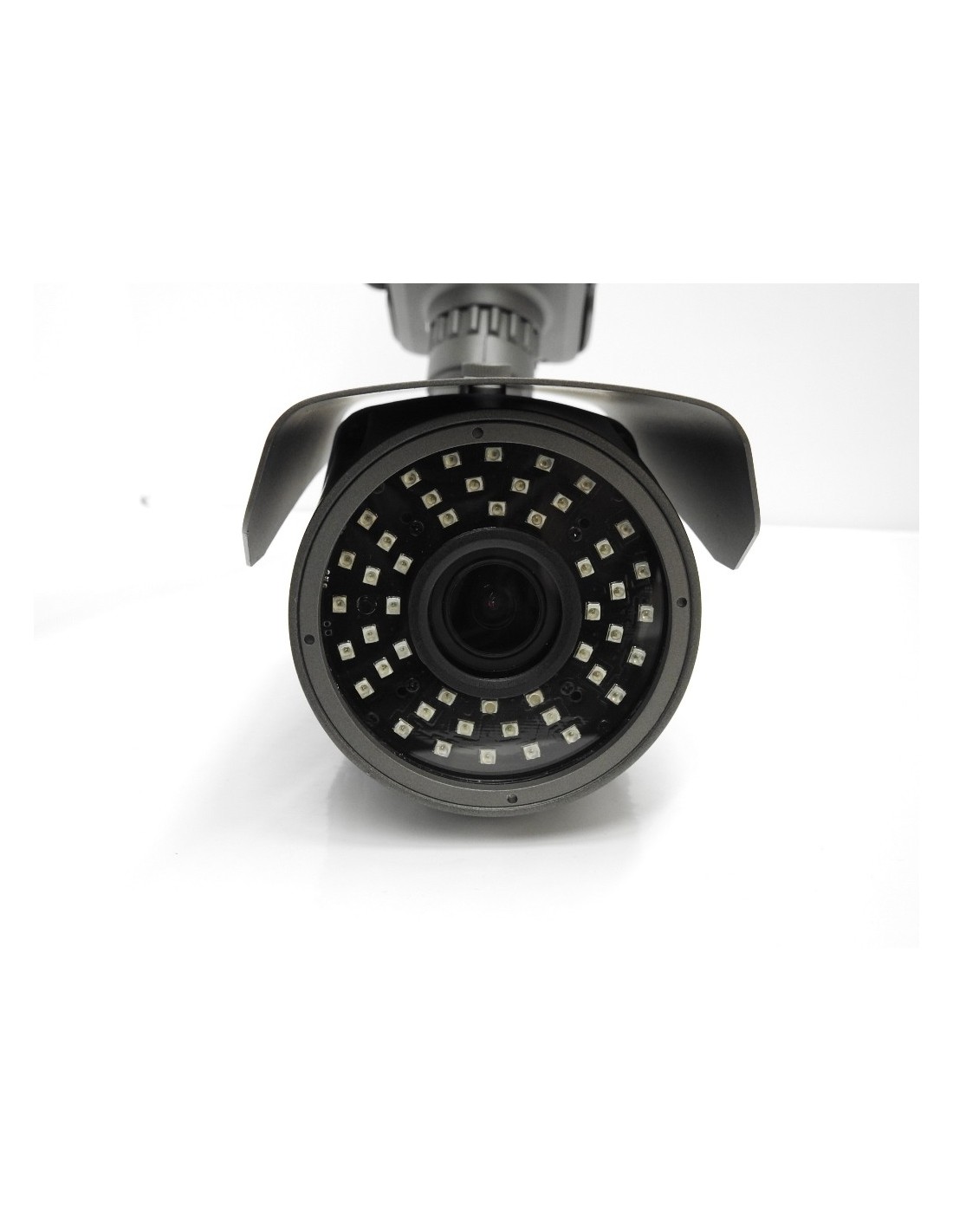

Night Vision

Infrared LED

14µ x 48PCS , (￠5 (12µ) x 72PCS  Optional)

Infrared Distance

60M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Camera Features

Day/Night

Auto (ICR) / Color / B&W

OSD Menu Language

YES

White Balance

Auto/Manual

Gain Control

Auto

Noise Reduction

3D NR

Picture Adjustment

YES

WDR

DWDR

OSD Support

YES

UTC

Optional

General

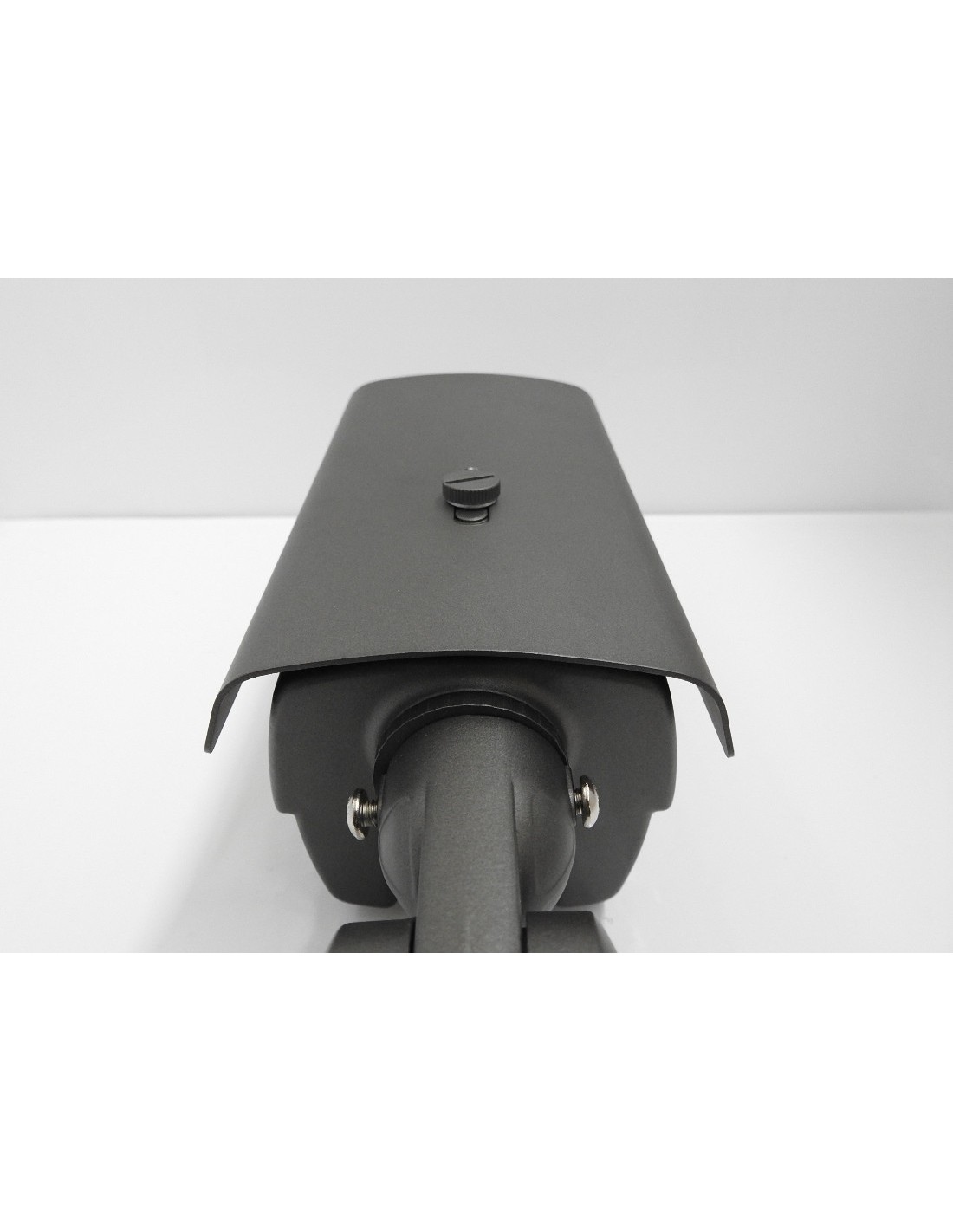

Housing

Metal,IP66

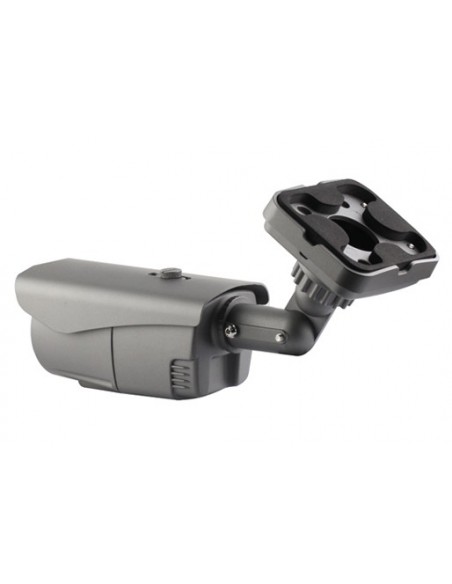

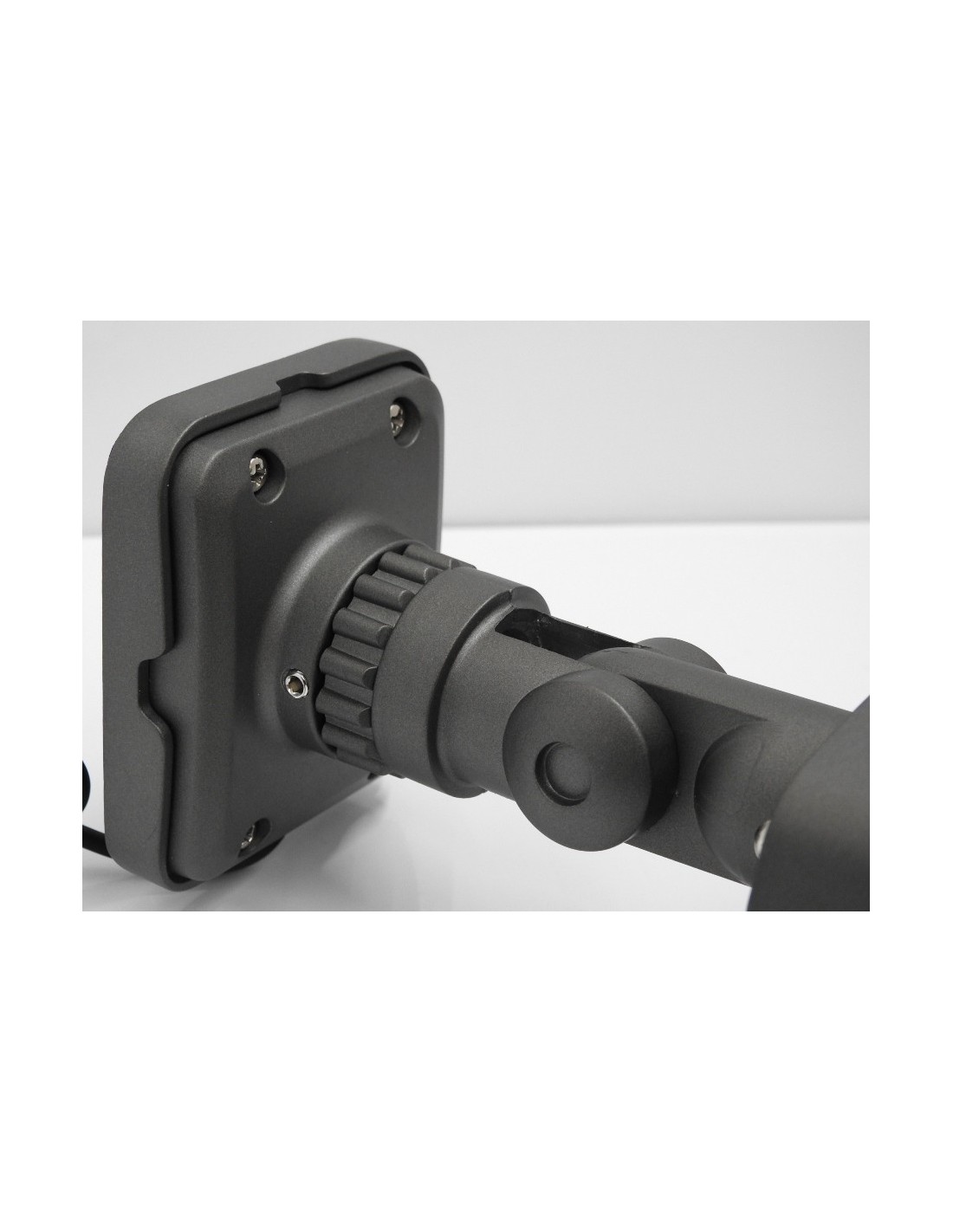

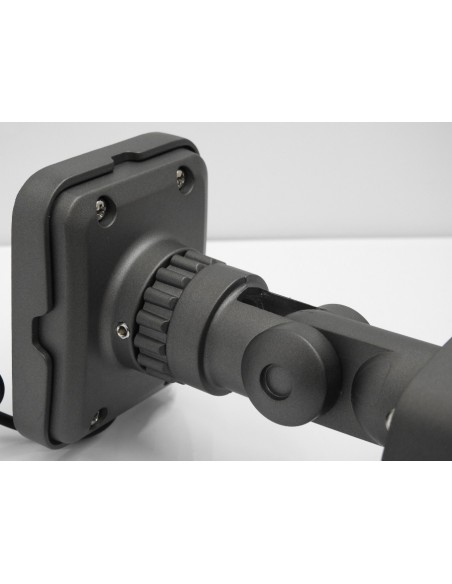

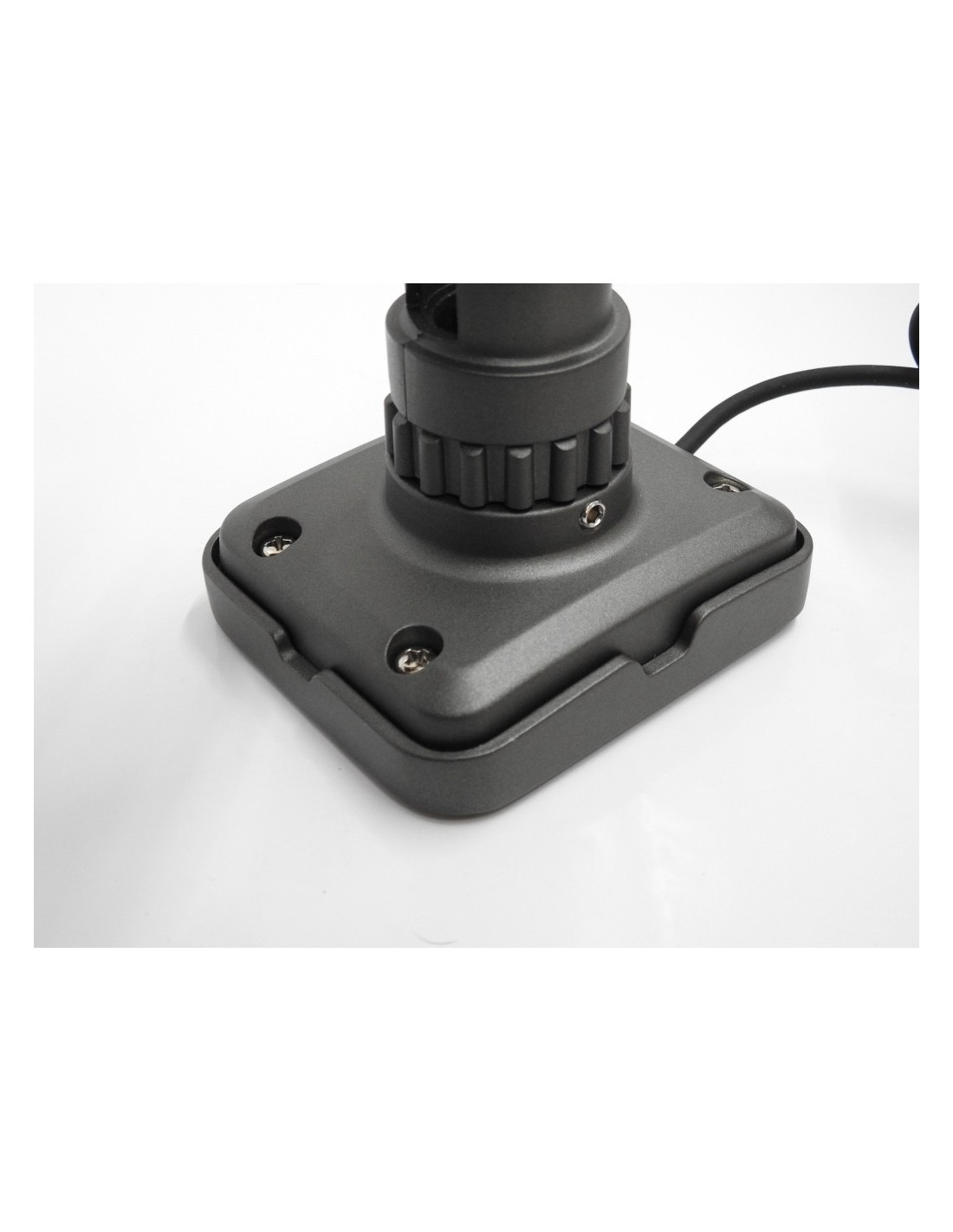

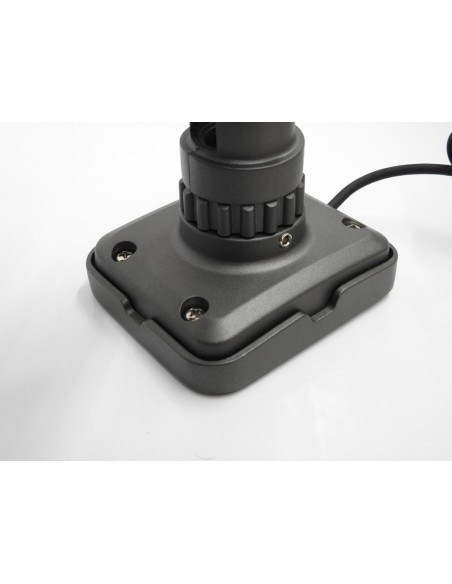

Bracket

YES, Anti-Cut Bracket

Dual Voltage

NO

IR Cut Filter

YES

Heater

NO

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 1000mA

Dimension

305(W) x 101(H) x 110D)mm

Weight

1.5kg
