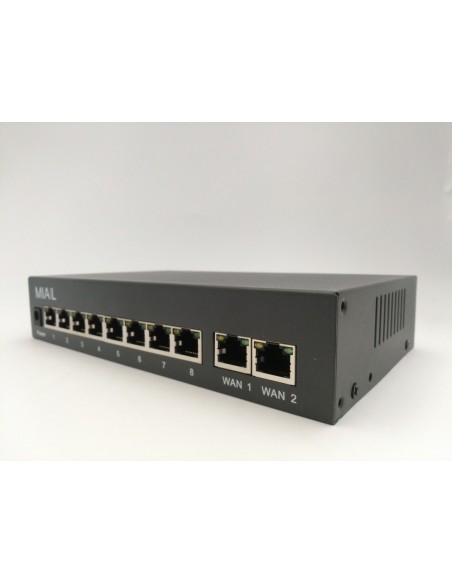

Switch 8 POE + 2 UPLINK 10/100 IEEE 802.3 AF/AT 48V - 120W

Item

Description

Power

Power Adapter Voltage

Input180-240V/AC  50-60Hz ; Output 48V/DC

Consumption

100W

Network Connector

Network Port

1~8 port: :10/100Mbps    POE Ethernet port

Network Port

WAN1/WAN2 port :10/100/1000Mbps

Transmission Distance

1~8 port: 100m

Transmission Distance

WAN1/WAN2 port: 100m

Transmission Medium

Cat5/5e/6  standard network cable

Network Switch

Network Standard

IEEE802.3/10BASE-T  Ethernet

IEEE802.3u/100BASE-TX  Ethernet

IEEE802.3x Flow Control,  IEEE802.3az

Maximum Frame Size

1536 Bytes

MAC Address List

2K

PoE Standard

IEEE802.3af/at

Power Over Ethernet

PoE Power Supply Type

End-Span(1/2+;3/6-)

PoE Power Consumption

af, (every port)

LED Status Indicator

POE Ethernet

POE: 8 green light indicates that the POE is power on;

Ethernet: 8 yellow light indicates that the

Ethernet Link and Act;

Environmental

Working temperature

0℃~55℃

Relative Humidity

5-95%

Storage temperature

-40℃~70℃

Mechanical

Dimension (L x W x H) mm

200*120*40

Material

Galvanized sheet

Color

Black

Weight

564g

Stability

MTBF

>30000h
